Engineering excellence in mixing technology

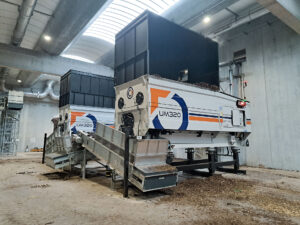

The UM 320 mixer is engineered with a tri-auger system, comprising one lower and two upper augers, facilitating thorough homogenisation of diverse substrates, including high-fibre lignocellulosic materials and digestate. Its mixing chamber, reinforced with diamond-patterned anti-wear plates, ensures durability and resistance to abrasion, thereby extending the machine's operational lifespan.
Key technical specifications include:
- Powertrain: Equipped with a 160 kW AC motor, turbo clutch, and a transmission system designed to withstand a breaking load of 1,000,000 N (equivalent to 100 tonnes), ensuring consistent performance under variable load conditions.
- Capacity: The mixer handles volumes exceeding 70 m³/h, adaptable to both continuous and batch processing modes, thereby accommodating varying operational demands.
- Maintenance Accessibility: Large access doors on both sides of the mixing chamber facilitate safe and efficient maintenance, minimizing downtime and ensuring operator safety.
Integration with Tiger Depack and Girasole Tunnel composting systems
The efficacy of the UM 320 mixer is further enhanced when integrated into a comprehensive organic waste processing line. The Tiger Depack system precedes the mixer, efficiently separating organic material from packaging contaminants, yielding a clean substrate ideal for subsequent processing.
Post-mixing, the homogenised material is directed to the Girasole Tunnel Composting system, which provides a controlled aerobic environment for optimal compost maturation. This sequential integration ensures a streamlined process from waste input to high-quality compost output, maximising resource recovery and minimising environmental impact.
Applications in soil remediation
Beyond waste processing, the UM 320 mixer demonstrates versatility in soil remediation applications. Its robust mixing capabilities allow for the incorporation of amendments into contaminated soils, promoting the breakdown of pollutants and restoration of soil health.
Conclusion
Cesaro Mac Import's UM 320 mixer stands as a testament to engineering innovation in the bioenergy sector. Its integration with the Tiger Depack and Girasole Tunnel Composting systems exemplifies a holistic approach to organic waste management, aligning with industry goals of efficiency, sustainability, and environmental stewardship.
